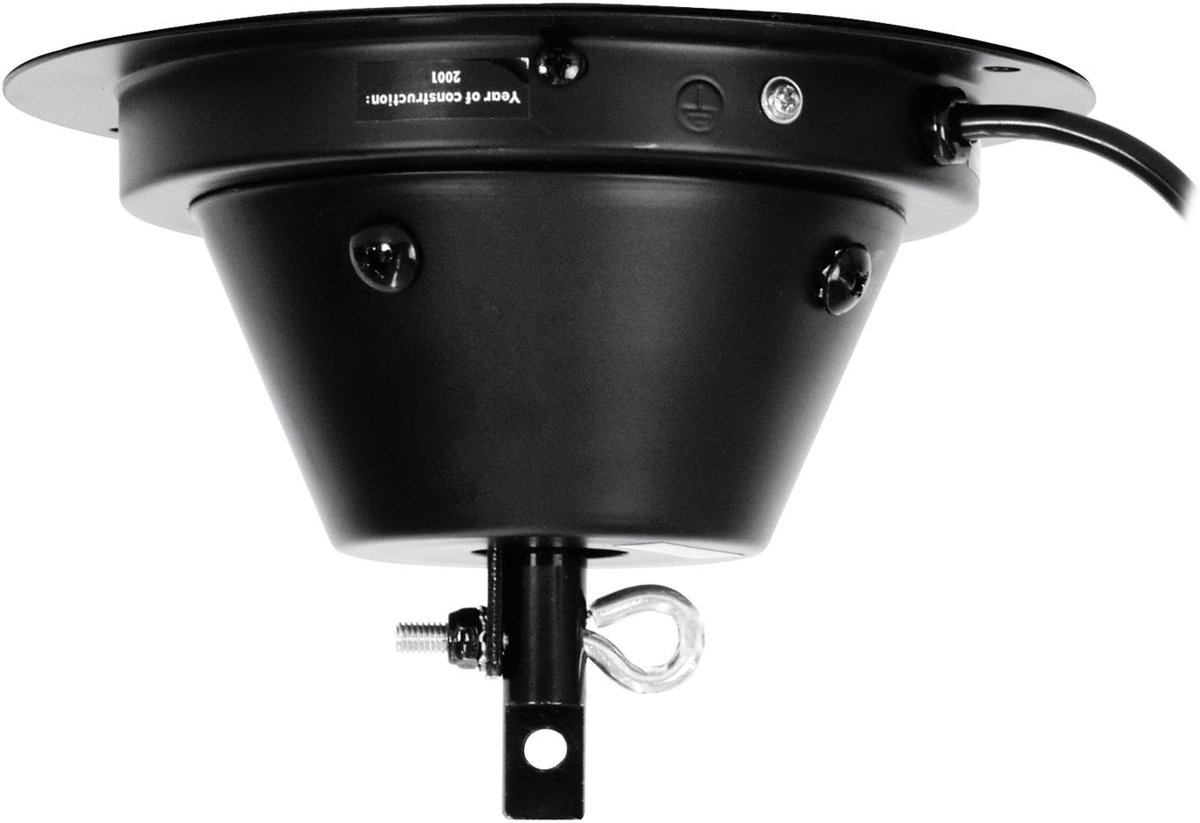

EUROLITE MD-2010 Safety Spiegelbolmotor

Safety features
?


Rugged construction with steel housing for long operation
?


High stability due to massive motor axle
?


Mechanic fall safety against axle loosening inside the motor
?


Approved load with 12-fold testing weight
?


Additional attechment eyelet for secondary attachment of the load
?


EUROLITE safety rotary motors comply with the safety norm EN 292 and safety regulation BGV C1 (Germany)
?


Quality management for testing every production charge

Mirror ball motor for up to 50 cm diameter

Suitable for driving mirror balls up to a maximum weight of 10 kg
This weight corresponds with a diameter of 50 cm for the EUROLITE mirror balls
The maximum load always means the mirror ball weight including the mirror ball chain, the safety chain and the fixation material
2 chains and 4 quick links must be ordered separately
1 rotation per minute
Delivered with open cable-ends
For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
The motor always has to be installed with a secondary safety attachment
Before taking into operation for the first time, the installation has to be approved by an expert
Power supply:
230 V AC, 50 Hz

Power consumption:
3.5 W

Maximum load WLL (4-fold):
30 kg

Maximum load BGV C1 (8-fold):
15 kg

Maximum load BGV C1 (10-fold):
12 kg

Maximum load BGV C1 (12-fold):
10 kg

Max. diameter of mirror ball:
50 cm (EUROLITE)

Rotation-speed:
approx. 1 RPM

Diameter of base plate:
190 mm

Height:
130 mm

Weight:
1 kg

Merk	EUROLITE
Inhoud	EUROLITE MD-2010 Safety Spiegelbolmotor
Introductie jaar	2019
Leeftijd
EAN	4026397333152
Sku	1654504
